1Rewinding form: |
Automatic tension control winding |
|
Rewinding substrate material: |
PE breathable and non-breathable film 12-40g/㎡ |
|
Rewinding speed: |
280-300m/min |
|
Mechanical speed: |
300m/min |
|
Max effective width of substrate: |
330mm, roller width 400mm |
|
Unwinding diameter: |
Φ580 mm |
|
Winding diameter: |
Φ580 mm |
|
Inner diameter of base material core: |
3” |
|
Overall power: |
about 2kW |
|
Flowing: |
From left to right |

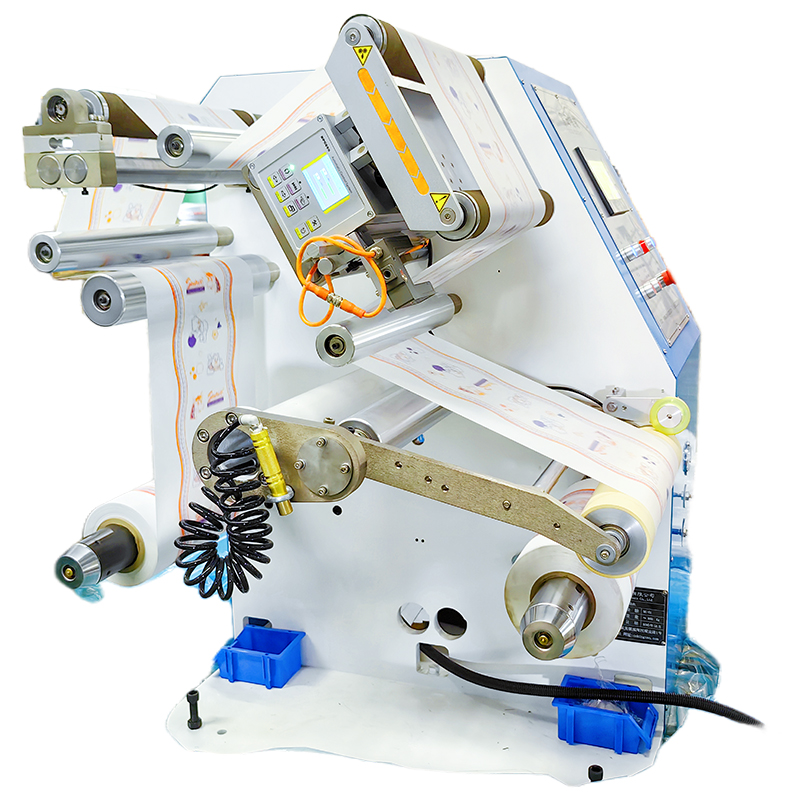

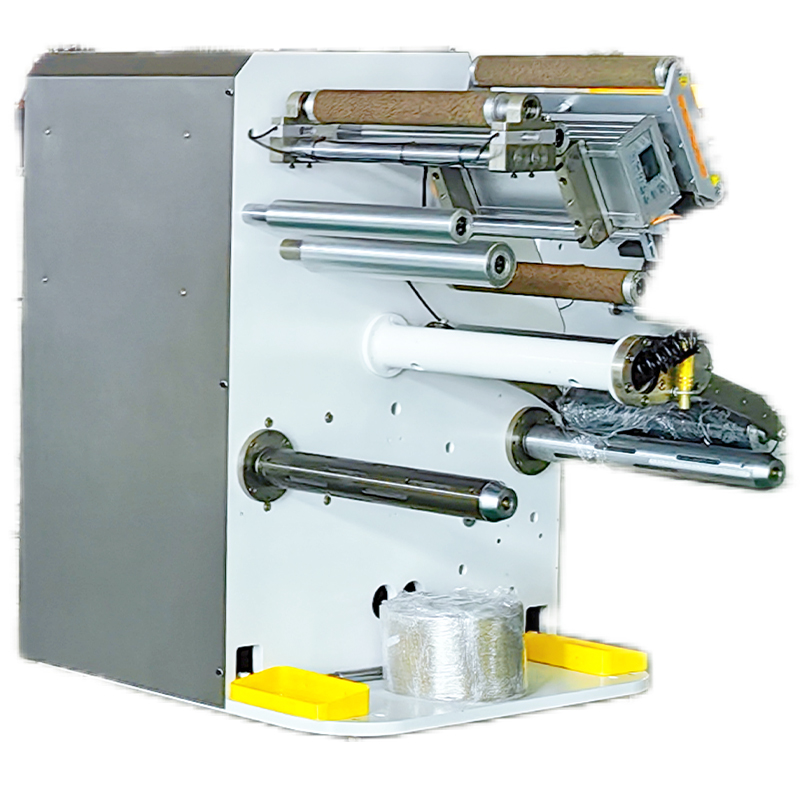

The complete control system of the FTFJ fully automatic rewinder adopts high-end well-known brand PLC control and correction systems to ensure the correct position of the base material, full-process automatic tension feedback control, precise control of rewinding and unwinding tension, real-time positioning point measurement and control system, positioning point data Analysis system and high-end image comparison system ensure product quality, equipment is stable and reliable, and cost-effective.
