Rewinding form: |
Siemens servo motor rewinding |
|
Rewinding substrate material: |
10-60g/㎡ PE film 10-60g/㎡ |
|
Rewinding speed: |
400m/min |
|
Mechanical speed: |
500m/min |
|
Max effective width of substrate: |
320mm, roller width 380mm |
|
Maximum diameter of unwinding: |
Φ600 mm |
|
Maximum winding diameter of winding: |
Φ600 mm |
|
Inner diameter of base material core: |
3 inches |
|
Maximum web weight: |
15-16kg |
|
Overall power: |
about 4.5kW |

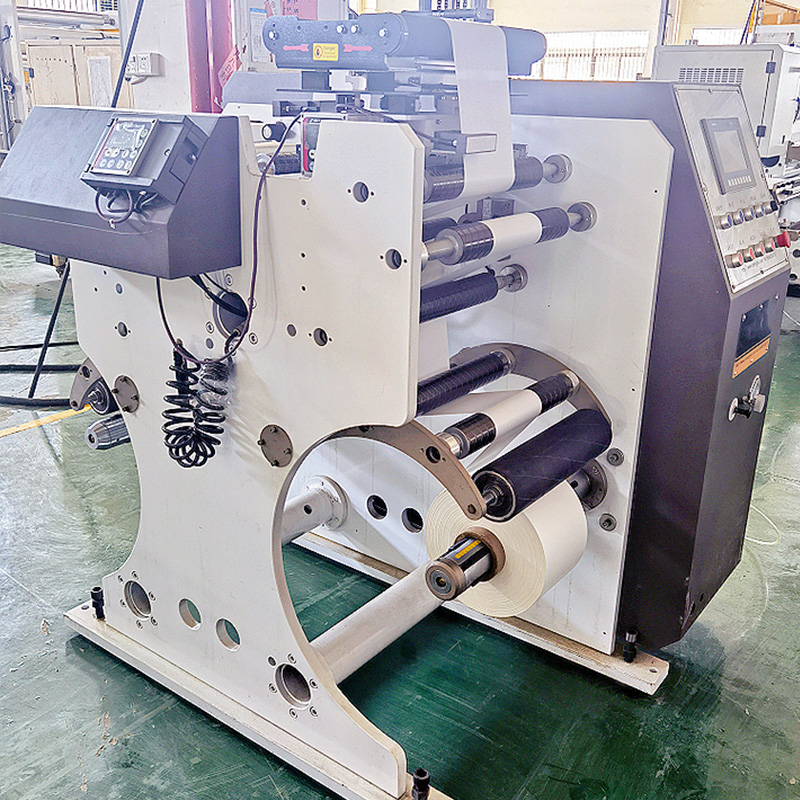

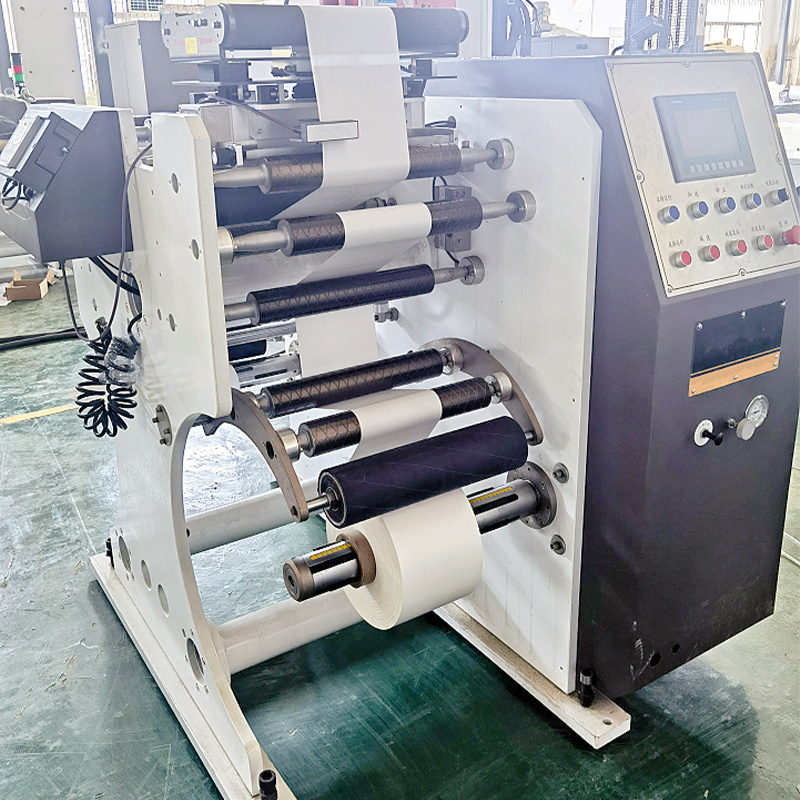

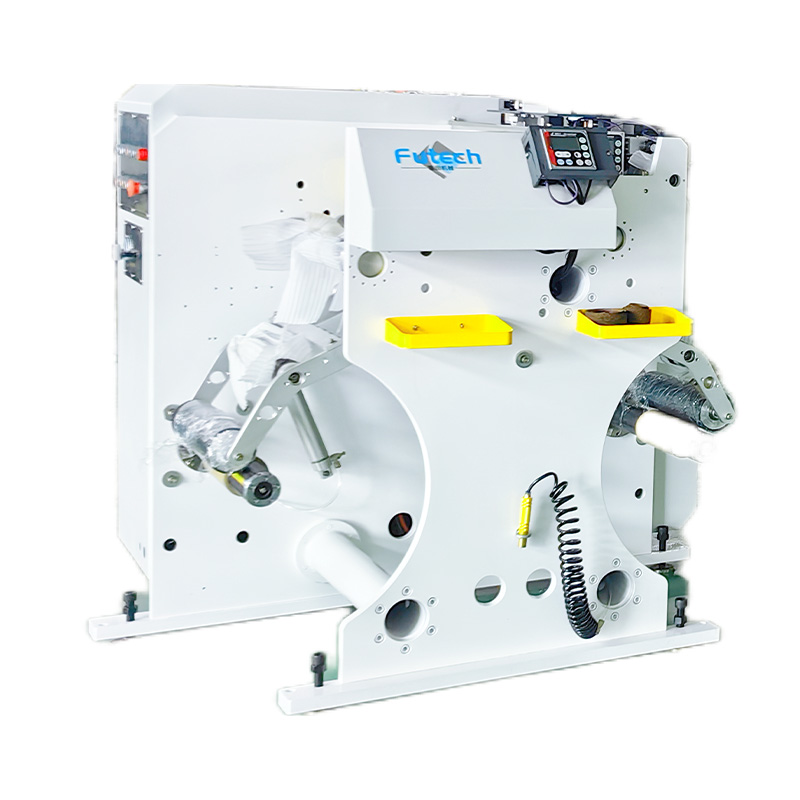

The complete control system of the FTJP high-speed rewinder adopts German Siemens PLC control, a complete set of German SIEMENS servo drives, and a high-end brand correction system to ensure the correct position of the base material. The tension detection adopts the German E+L tension detection controller to realize automatic tension throughout the process. Feedback control, precise control of rewinding and unwinding tension, real-time measurement and control system for positioning points, and data analysis system for positioning points ensure product quality and equipment stability and reliability.
