Material width: |
1200～1600mm |
|
Guide roller length: |
1700mm |
|
Mechanical speed: |
70m/min |
|
Maximum embossing speed: |
40-50m/min (the actual speed depends on the material and the hole type of the non-woven fabric) |
|
Unwinding diameter: |
Maxφ900mm |
|
Rewinding diameter: |
Maxφ700mm |
|
Minimum slitting width: |
100mm |
|
Unwinding and loading form: |
3″ air shaft expansion and tightening unwinding |
|

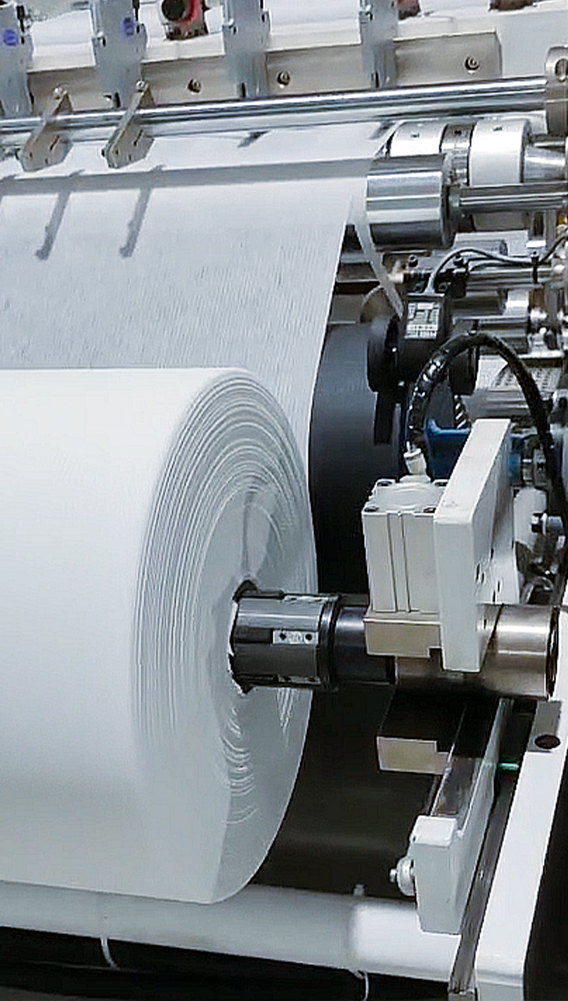

Rewinding and loading form: |
3″ air-air shaft expansion and tightening |
|
Tension control accuracy: |
±0.3kg |
|
Tension control range: |
1～15kg |
|
Total power: |
40KW |
|
Compressed air source pressure Air supply: |
≤0.6MPa |
|
Applicable material: |
SS non-woven 18g-40g SSS N.W. material: 18gsm~40gsm |

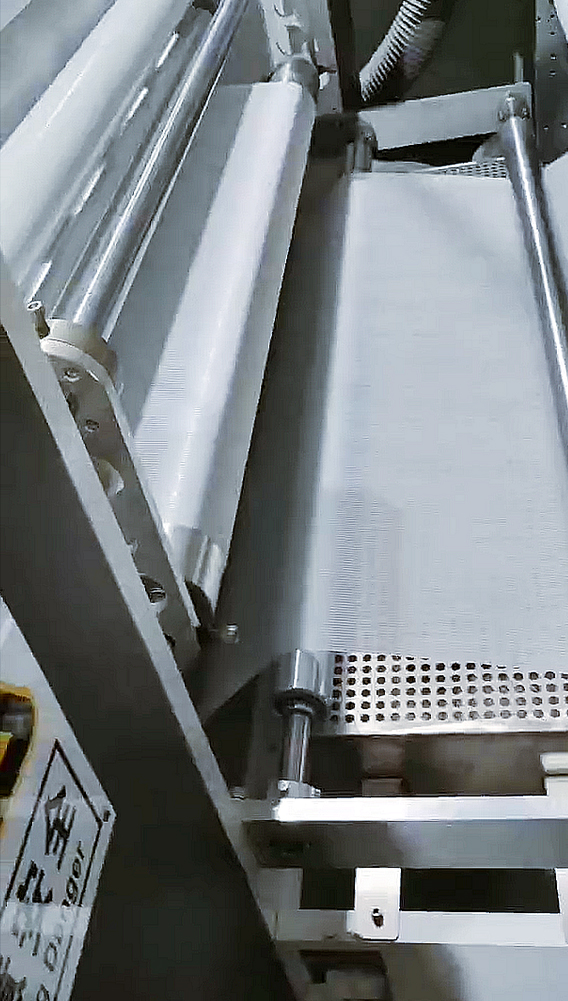

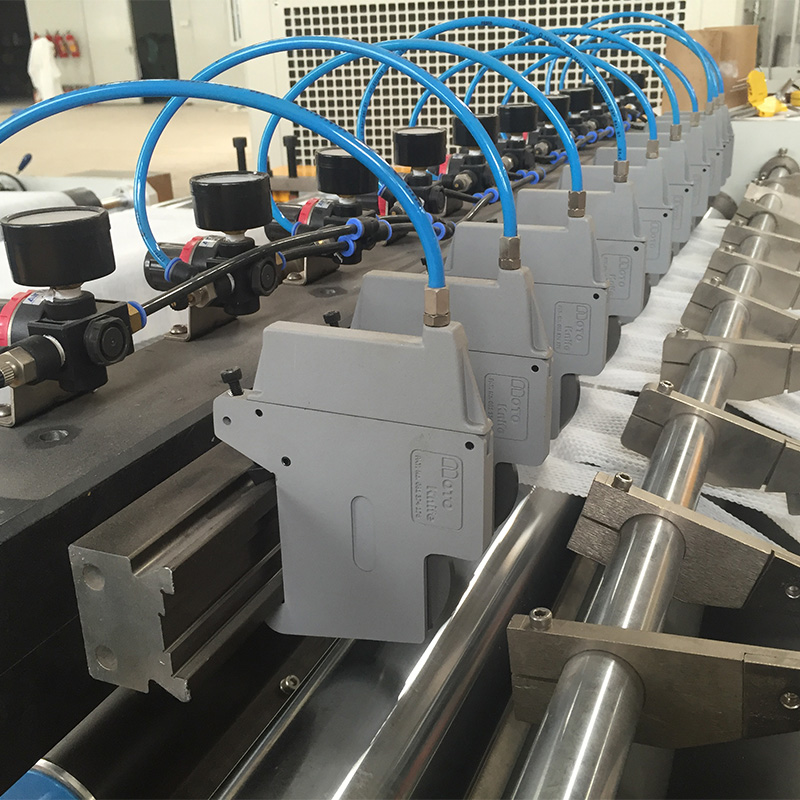

The DK1200-00/1600 00 Embossed machine adopts servo drive, paired with imported programmable controllers, and has automatic tension closed-loop control throughout the production process.Embossed machine can emboss or perforated materials such as spunbonded non-woven fabrics and hot air non-woven fabrics. The products are widely used in industries such as diapers, sanitary napkins, and medical supplies. The equipment is equipped with an online slitting device to improve raw material utilization and increase profits for customers.
