Weight of final PE film: |
13-80 grams(customization） |
|
Width of final PE film: |
1000mm-3800mm(customization） |
|
Applicable material: |
PE |
|
Extrusion capacity: |
350-700kg/h(customization） |
|
Mechanical speed: |
30-300m/min(It depends on the production formula and raw materials) |
|
Installed capacity: |
about 450KW |
|
Power supply: |
380V/50Hz/3 phase |
|
Machine dimensions: |
18 m long×6m wide×4.5m high |
|
Color standard: |
Standard |

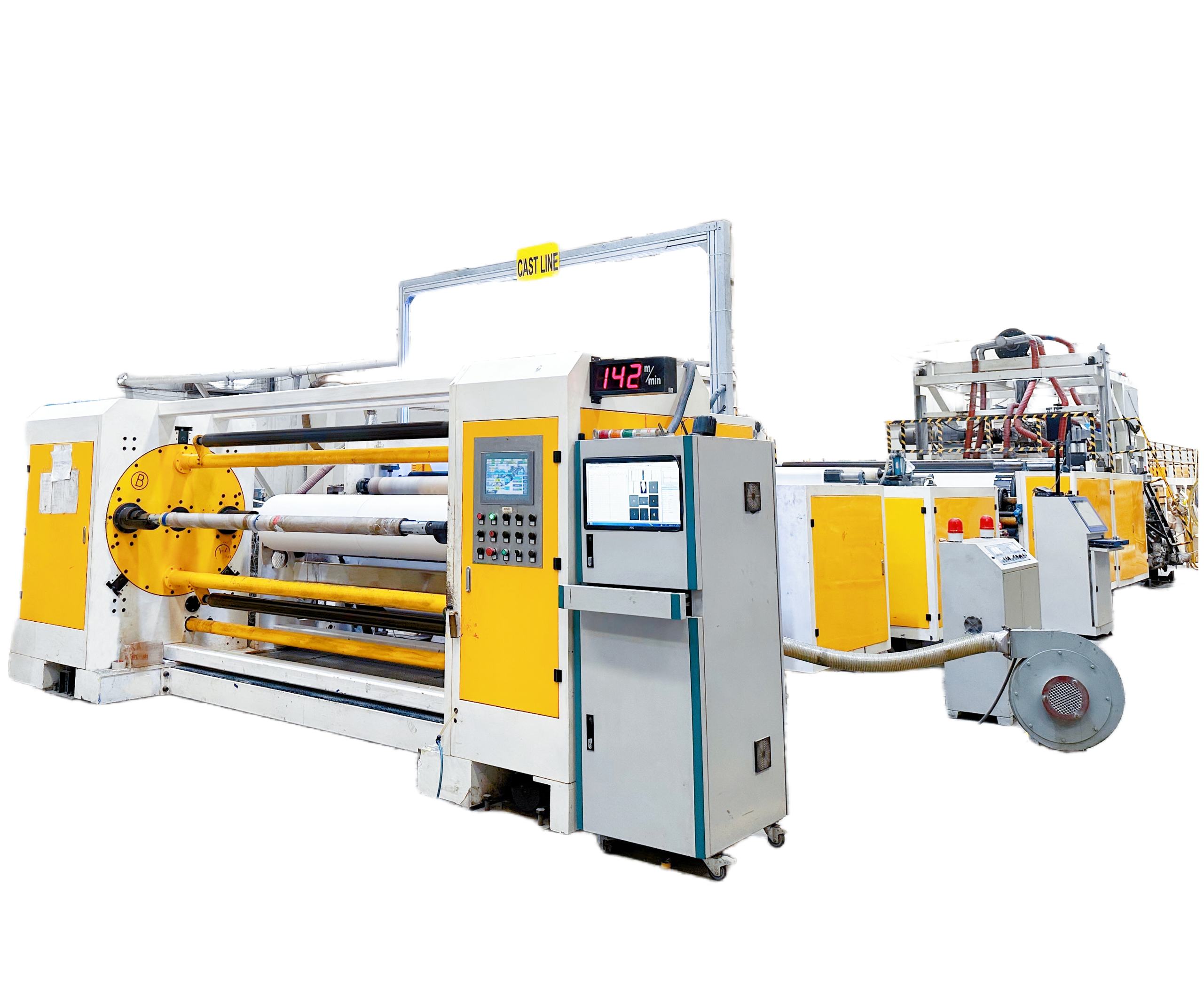

1)Our PE cast film extrusion line can be divided into: 1000mm-4200mm,can be customized. According to the film width, and can be divided into three layers, five layers, and seven layers according to the configuration of the extruder.
2) The PE cast film line is mainly combined of five parts: extrusion part, casting part, corona part, winding part and electric control part. Among them, the die part and the extrusion part can be freely combined according to customer requirements, so as to meet the different needs of our customers (market) to the greatest extent.
3) The line speed of our cast film line has reached the level of 300m/min. The runner design of the roller has better cooling effect, more stable product quality and higher output.
4) Compared with imported equipment, our cast film line also has the characteristics of high speed, stable performance, environmental protection and energy saving.
Packing Detail：
Wooden box + simple waterproof and rust-proof packaging
Application：
This equipment uses LDPE, LLDPE, HDPE, etc. as the main raw materials to produce cast air-permeable films, PE films, embossed films, matting films and other products. Among the varieties of plastic films, breathable films have been widely used in the sanitation and pharmaceutical industries. Products produced with them involve baby diapers, adult incontinence pants, nursing products, and feminine hygiene products; medical protection products, hospital anti-allergic bedding ; Protective clothing, isolation clothing and their lining materials, etc.
